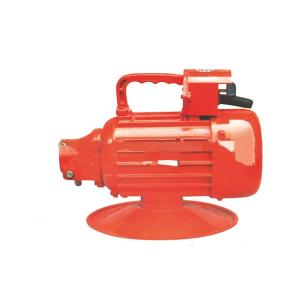

Electric Concrete Vibrator

Name: Electric Concrete Vibrator
Brand: chinacoal
Price: 1 USD

Place of Origin : China

Brand Name : chinacoal

Certification : ISO9001,CE

Packaging Details : seaworthy export carton

Delivery Time : 7 days for ready goods

Payment Terms : TT,LC,Paypal,Western Union

Supply Ability : 3000 sets/month

MOQ : 1set

Contact Now

Product introduction

Electric concrete vibrator ZN50~ZN100 is driven by motor, transmitted by flexible shaft, then gain high frequent vibration.
It is suitable for concrete cast-in site of various bridges, tunnels, building foundation precast units beams and columns in remote districts, especially an indispensable tool in variou concrete constrction sites where there is no electricity or in the condition of power-down.

It has the advantage of good mechanical performance, stable operation, low noise, good anti-wear performance, and reducing low working costs and labor load. It is widely applied in the world.

You can choose other Electric Concrete Vibrator
Model	ZN50	ZN70	ZN90	ZN100
Power(KW)	1.1	1.5	2.2	3.0
Voltage(V)	220/380
Frequency(HZ)	50/60
Rotary speed(rpm)	2840
Packing size(cm)	44.525.533
Weight(kg)	17	20	22	24
Packing	Carton
Colour	Orange red, yellow, silvery white
Certificate	CE
Coupling	Chinese type, Japanese type(Ball type/Pin type), Malaysian type

You can match this type of Electric Concrete Vibrator with different concrete vibrator shaft

Model	JKV25	JKV28	JKV32	JKV35	JKV38	JKV45	JKV50	JKV60	JKV70
Dia of vibrator head(mm)	25	28	32	35	38	45	50	60	70
Frequency(HZ)	160	160	160	160	180	180	200	200	200
Length(m)	4~8
Coupling	Chinese type, Japanese type (Ball type/Pin type), Malaysian type

About our company:

Shandong Chinacoal is an enterprise that specializes in the R&D of light construction machinery. We invest a lot of time and effort in developing the concrete vibrator, plate compactor, power trowel, vibratory roller, etc.
